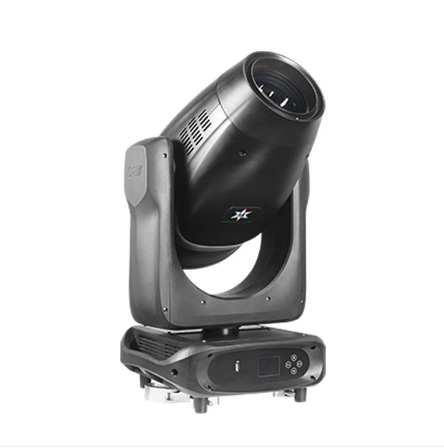

AL-L650
페이지 정보
본문
Electrical
Input voltage: AC100-240V 50/60Hz
Input power: 800W, power factor PF≥0.98
Maximum input current: 8A
Light Source
Light source: 650W white LED module (choice of high brightness mode or high CRI mode)
Ra≥70 (DREAM L650 SPOT high brightness);
Ra≥90 (DREAM L650H SPOT high CRI)
LED life: 20000 hours
Optical
Optical lens: HD optical lens with anti-reflection coating
Zoom range: 6°～56°
Color System
CMY infinite mixing, output high saturated color (RGB), pure color.
CTO color temperature linear adjustment 3200-6200K
One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.
Gobo system
Dual rotate gobo wheels, each has 7 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of running water and shaking, the gobo wheel can be accurately positioned at 16bit.
One static gobo wheel with 8 fixed gobos + 1 open, can realize bidirectional flowing effect.
Effects
2 prisms, one is 4-facet linear and one is 6-facet circle, can be overlapping combined, can be bidirectional rotating, can be auto-focus.
Two atomized frosts with high-bright output.
0-100% electronic dimming control, 4 dimming curve options, 4 dimming speed options.
Electronic strobe 1-25Hz, a variety of stroboscopic methods to choose
Fast motorized iris 5-100% linear adjustment, with macro function and multi-effects changeable
Movement
Pan=540°, 16bit control
Tilt=270°, 16bit control
Electronic Control
Control channels: 25ch/29ch/42ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3 + XLR-5; RJ45 (optional)
Menu display: 2.4" LCD color screen; Chinese and English language, menu 180° reversible display.
Built-in self-rechargeable battery, menu can be edited without power supply (optional version);
Support connecting power bank to enter the menu and edit address code and other settings
Electronic sensors testing, fan intelligent detect and controllable
Eco mode (sleep mode when standby)
Non-touching magnetic encoder positioning system for pan-tilt
Size and Weight
Fixture size: 417X417X767 (mm)
Fixture weight: 34Kg
Flight case size: 1045X648X845mm (2 positions)
Flight case weight: 45.8 Kg
Conditions of Use
Working environment temperature: -20℃~40℃
Protection class: IP20
P.s. Specifications and documentation subject to change without notice. Test lab data may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, etc. The company reserves the right of final interpretation.
