Source
Lamp: Discharge short arc lamp with integrated reflector

Approved model: Osram Sirius HRI 470 W RO

Lifetime: 1.500 hours @ 470W Standard mode, 2.000 hours @ 380W Eco mode

CRI: 80/90

CCT:

Light output 6.300K

Lamp 7.500K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system
Robe’s proprietary optical design (Patent pending).

Zoom optical system: 14:1

Light output:

Beam mode 1.8°: 2 200.000 lx @ 5 m

Beam mode 1.8°: 137.500 lx @ 20m

Spot mode 3°: 715.300 lx @ 5 m

Spot mode 3°: 44.710 lx @ 20m

Zoom range:

1.8° - 21° beam mode

3° - 42° spot mode

Output lens diameter: 150 mm

Fixture total lumen output: 20.375 lm

Dynamic Effects and Features
Cyan: 0 – 100%

Magenta: 0 – 100%

Yellow: 0 – 100%

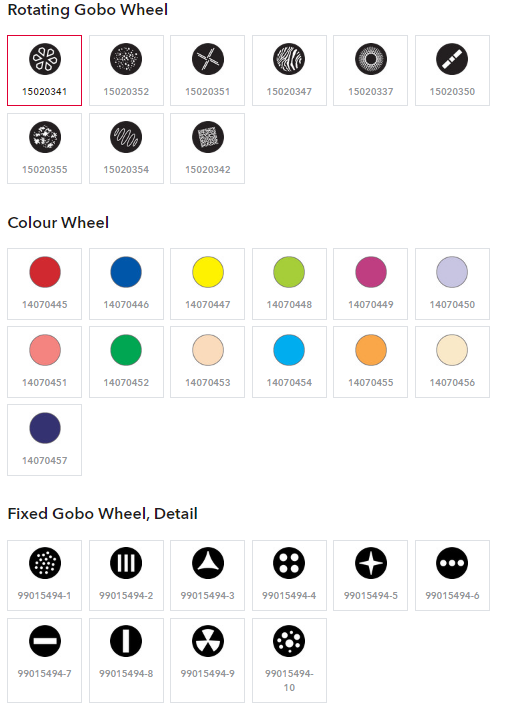

Colour Wheel: 13 dichroic filters + white

Rotating gobo wheel: 9 rotating gobos + open, indexable and replaceable gobos

Static gobo wheel: 14 gobos + open

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed

Innovative Effect Engine consisting of 6 prisms placed on two wheels, producing 12 various Beam and Flower effects

Beam shaper emulating framing shutters and creating rectangular beam shapes, rotatable and indexable (Patented)

Frost: variable 1° (light) and 5° (medium)

Motorized zoom and focus

Remote Hot-spot control: adjustable from 5:1 to 2.5:1 in spot mode and from 7:1 to 2.7:1 in beam mode (Patent pending)

Pre-programmed random strobe & pulse effects

Dimmer: 0 – 100%

Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

Wireless CRMX™ technology from Lumen Radio - on request

DMX Protocol modes: 2

Control channels: 39, 34

Pan/Tilt resolution: 8 or 16 bit

Colour wheel positioning: 8 or 16 bit

CMY: 8 bit

CRI Selection: 80 or 90

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Static gobo wheel positioning: 8 bit

Animation wheel: 8 bit

Animation wheel rotation: 8 or 16 bit

Prism indexing & rotation: 8 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Hot-Spot: 8 bit

Dimmer: 8 or 16 bit

Movement
Pan movement: 540°

Tilt movement: 265°

Movement control: Standard and Speed

Automatic Pan/Tilt position correction

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Rotating gobos
Glass gobos: 9 rotating gobos + open

Outside diameter: 15.9 mm

Image diameter: 12.5 mm

Thickness: 1.1 mm

High temperature borofloat or better glass

"SLOT&LOCK" system for easy replacement of gobos

Static gobos
Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers + open position

Thermal specification
Maximum ambient temperature: 45 °C (113 °F)

Maximum housing temperature: 80 °C (176 °F)

Minimum operating temperature: -5 °C (23 °F)

Total heat dissipation: max. 1945 BTU/h (calculated)

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 670 W

Power in connector: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

USB connector (series A)

Mechanical specification
Height: 640 mm (25.2”) - head in vertical position

Width: 396 mm (15.6”)

Depth: 230 mm (9.1”)

Weight: 22 kg (48.5 lbs)

Ingress protection rating: IP20
