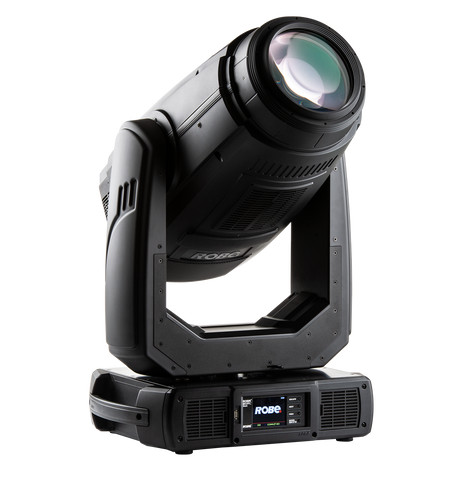

BMFL™ Blade
페이지 정보
본문
Source
Lamp: Compact short-arc metal halide lamp
Base: PGJX28
Approved model: OSRAM Lok-it! HTI 1700/PS
Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
CRI: 92+
Colour Temperature: 6.000 K
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 11:1
Zoom range: 5° - 55°
Output Lens diameter: 160 mm
Dichroic glass reflector for maximising the light efficiency
High efficient component optics
Fixture total lumen output:
40.000 lm @ 1700 W
36.500 lm @ 1500 W
32.000 lm @ 1200 W (Quiet mode)
Light output: 250.000 lx @ 5 m, 2.500 lx @ 50 m
Dynamic Effects and Features
Cyan: 0-100 %
Magenta: 0-100 %
Yellow: 0-100 %
Variable CTO: 2.700 - 6.000 K

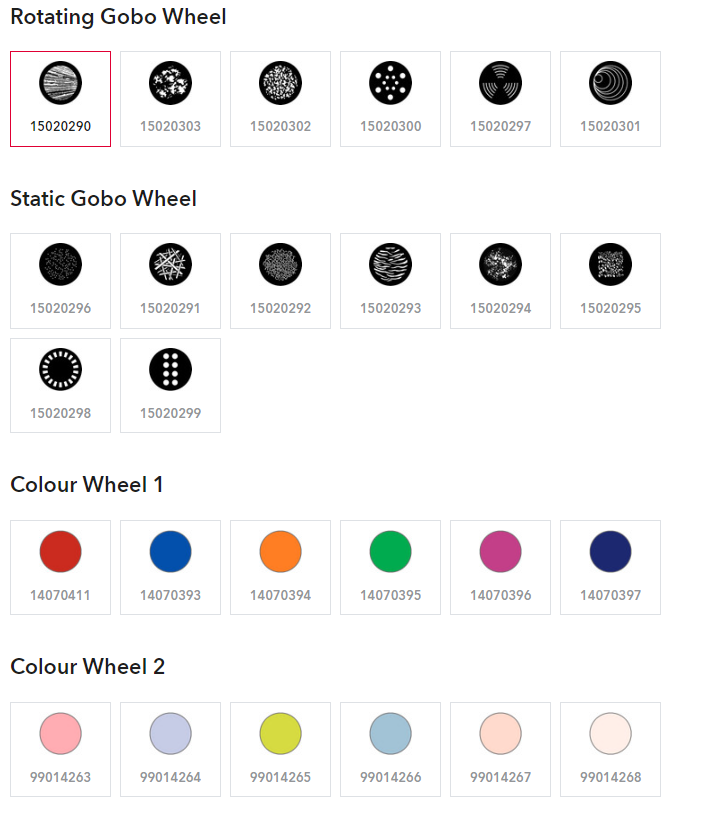

Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°
Rotating Gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
Static Gobo wheel: 8 static, replaceable "SLOT&LOCK" glass gobos + open
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Prism 1: 6 facet linear
Prism 2: 6 facet circular
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Variable Light, Medium and Heavy Frosts
Motorized zoom and focus
Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
Dimmer: Optimized dual blade system for exceptional smooth dimming
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 2
Control channels: 49, 42
Pan/Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 8 or 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Static gobo wheel positioning: 8 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan/Tilt position correction
Rotating gobos
6x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Static gobos
8x static glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Max. thickness: 1.1 mm
High temperature borofloat or better glass
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 109 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions, variable speed
Framing shutters system
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects
Pre-programmed: Shape and blade sequences
Rotation: 90° of the complete framing system
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 170 °C (338 °F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5800 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 200-240 V, 50/60 Hz
Power consumption: 2000 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
Data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 813 mm (32")
Width: 483 mm (19")
Depth: 335 mm (13.2")
Weight: 37.9 kg (83.6 lbs)
Ingress protection rating: IP20
Lamp: Compact short-arc metal halide lamp
Base: PGJX28
Approved model: OSRAM Lok-it! HTI 1700/PS
Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
CRI: 92+
Colour Temperature: 6.000 K
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 11:1
Zoom range: 5° - 55°
Output Lens diameter: 160 mm
Dichroic glass reflector for maximising the light efficiency
High efficient component optics
Fixture total lumen output:
40.000 lm @ 1700 W
36.500 lm @ 1500 W
32.000 lm @ 1200 W (Quiet mode)
Light output: 250.000 lx @ 5 m, 2.500 lx @ 50 m
Dynamic Effects and Features
Cyan: 0-100 %
Magenta: 0-100 %
Yellow: 0-100 %
Variable CTO: 2.700 - 6.000 K
Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°
Rotating Gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
Static Gobo wheel: 8 static, replaceable "SLOT&LOCK" glass gobos + open
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Prism 1: 6 facet linear
Prism 2: 6 facet circular
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Variable Light, Medium and Heavy Frosts
Motorized zoom and focus
Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out
Dimmer: Optimized dual blade system for exceptional smooth dimming
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 2
Control channels: 49, 42
Pan/Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 8 or 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Static gobo wheel positioning: 8 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan/Tilt position correction
Rotating gobos
6x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Static gobos
8x static glass gobos
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Max. thickness: 1.1 mm
High temperature borofloat or better glass
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 109 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions, variable speed
Framing shutters system
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects
Pre-programmed: Shape and blade sequences
Rotation: 90° of the complete framing system
Thermal specification
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 170 °C (338 °F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5800 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 200-240 V, 50/60 Hz
Power consumption: 2000 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
Data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 813 mm (32")
Width: 483 mm (19")
Depth: 335 mm (13.2")
Weight: 37.9 kg (83.6 lbs)
Ingress protection rating: IP20
