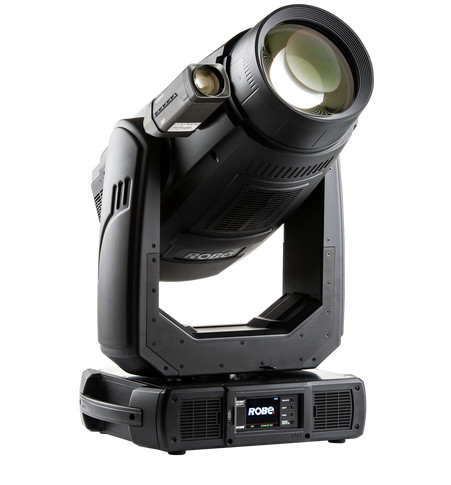

BMFL™ FollowSpot LT
페이지 정보
본문
Source
Light source type: Compact short-arc metal halide lamp
Base: PGJX28
Approved model: OSRAM Lok-it! HTI 1700/PS
Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
CRI: CRI 92+
Colour temperature: 6.000K
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 8:1
Zoom range: 1° - 8°
Output lens diameter: 180 mm
Dichroic glass reflector for maximising the light efficiency
High efficient component optics
Fixture total lumen output:
34.600 lm @ 1700 W
32.180 lm @ 1500 W
28.370 lm @ 1200 W (Quiet mode)
Illuminance: 455.000 lx @ 5 m
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 2.700 - 6.000 K
Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Variable Light, Medium plus repleceable Heavy (two another frosts included)
Motorized zoom and focus
Shutter: Separate dual blade system, variable strobe effect up to 10 Hz, full black out
Dimmer: Optimized dual blade system for exceptional smooth dimming
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 2
Control channels: 33, 27
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 170°C (338°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5800 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 200-240 V, 50/60 Hz
Power consumption: 2000 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 813 mm (32") - Head in vertical position
Width: 483 mm (19)
Depth: 335 mm (13.2")
Weight: 38.1 kg (84.0 lbs)
Ingress protection rating: IP20
Light source type: Compact short-arc metal halide lamp
Base: PGJX28
Approved model: OSRAM Lok-it! HTI 1700/PS
Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode
CRI: CRI 92+
Colour temperature: 6.000K
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 8:1
Zoom range: 1° - 8°
Output lens diameter: 180 mm
Dichroic glass reflector for maximising the light efficiency
High efficient component optics
Fixture total lumen output:
34.600 lm @ 1700 W
32.180 lm @ 1500 W
28.370 lm @ 1200 W (Quiet mode)
Illuminance: 455.000 lx @ 5 m
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 2.700 - 6.000 K
Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white
Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Variable Light, Medium plus repleceable Heavy (two another frosts included)
Motorized zoom and focus
Shutter: Separate dual blade system, variable strobe effect up to 10 Hz, full black out
Dimmer: Optimized dual blade system for exceptional smooth dimming
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 2
Control channels: 33, 27
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 170°C (338°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 5800 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 200-240 V, 50/60 Hz
Power consumption: 2000 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Mechanical specification
Height: 813 mm (32") - Head in vertical position
Width: 483 mm (19)
Depth: 335 mm (13.2")
Weight: 38.1 kg (84.0 lbs)
Ingress protection rating: IP20
