Source
Lamp: Compact high-presure metal halide lamp

Base: PGJX36

Approved model: Philips MSR Platinum 35, 1200 W equivalent

Control: Automatic and remote on/off

Ballast: Electronic

Optical system
Fixture total lumen output: 26141 lm

Dichroic glass reflector for maximising the light efficiency

Beam angle:

Zoom range: 8.5° – 46.5° (8.5° – 42.5° for gobo, 9.8° – 46.5° for open hole)

Electromechanical effects
Cyan: 0–100%

Magenta: 0–100%

Yellow: 0–100%

CTO: 0–100%

Hot-spot control: Hot-or-not-spot

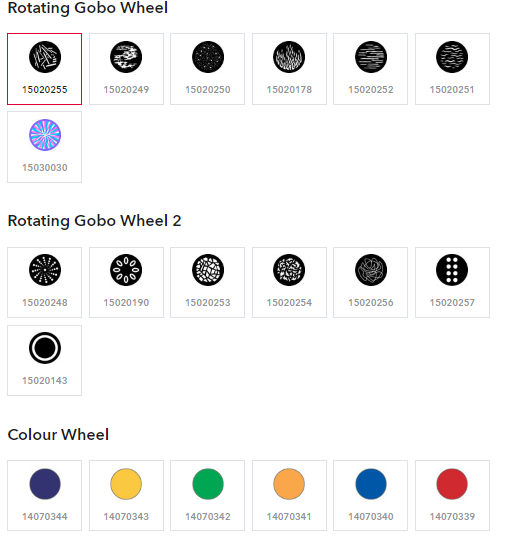

Colour wheel: 6 dichroic filters + white

Dual Graphic Wheel

Rotating Gobo wheel 1: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Rotating Gobo wheel 2: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open Iris: Motorized, stepless, pulse effects up to 3 Hz

Prism: 5-facet prism rotating in both directions at different speeds

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP" effect

Motorized zoom and focus

Pan: 540°

Tilt: 270°

Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2

Optional wireless version available: CRMX™ technology from Lumen Radio

Control channels: 38, 31, 29, 40 4 DMX protocol modes

3-editable programs, each up to 100 steps

Stand-alone operation

QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC

Pan/Tilt resolution: 8 or 16 bit

Movement control: Tracking and vector

Colour wheel positioning: 8 or 16bit

Rotating gobo wheel positioning: 8 or 16bit

Gobo indexing & rotation: 8 or 16bit

Dual Graphic Wheel: 8 bit Iris: 8 or 16bit

Frost: 8 bit Zoom: 8 or 16bit

Focus: 8 or 16bit

Dimmer: 8 or 16bit

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Rotating gobos
Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Thermal specification
Maximum ambient temperature: 45 °C (104 °F)

Maximum surface temperature: 100 °C (212 °F)

Electrical specification and connections
Power supply: Electronic auto-ranging

Input voltage range: 100–240 V, 50/60 Hz

Power consumption: 1020 W at 230 V / 50 Hz

Mechanical specification
Height: 722 mm (28.4") – head in vertical position

Width: 446 mm (17.6")

Depth: 530 mm (20.8")

Weight: 25.5 kg (56.2 lbs)

Fixation option: Pan/Tilt-lock mechanism
