Model

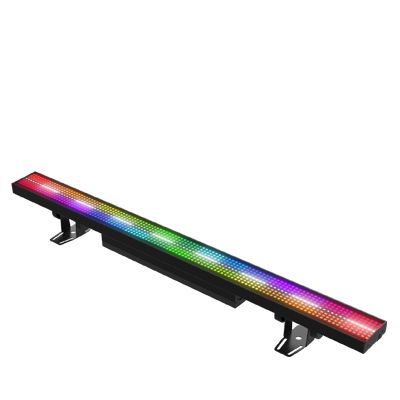

STROBE 3

Light Source

Light Sources:
672pcs 0.3W RGB LED
112pcs 3W CW LED
LED life expectancy: 20000 hours

Optical System

Beam Angle: 116°
RGB colour mixing
32 x RGB led zones can be controlled individually
16 x CW led zones can be controlled individually
High brightness, outstanding washing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Control and Program

4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 6/13/18/38/112/16/32/64/14/20 CH
Upgrade the firmware via DMX link

Electrical and Connectors

Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 315 W
Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

Fixture Specification

Fixture Dimensions:
Height: 111 mm (4.4")
Width: 84 mm (3.3")
Depth: 1000 mm (39.4")
Weight : 4.7 kg (10.36 lbs)
Carton Dimension:
Height: 340 mm (13.4")
Width: 280 mm (11.0")
Depth: 1090 mm (42.9")
Weight : 21.7 kg (47.8 lbs)

Work Environment

Maximum ambient temperature: 40°C
Minimum operating temperature: 0°C
Maximum surface temperature: 65°C

Approvals

CE compliant

Installation

Horizontally or vertically mounting are available
Operating position is universal
Safety Rope Hole

Included Items

Digital User Manual
Power Cable

Optional Accessories (with item code)

Clamp: 2060001635(C-100A)
Signal Line: 3-pin or 5-pin signal line
Safety cable: 2060000200(SW-02)
