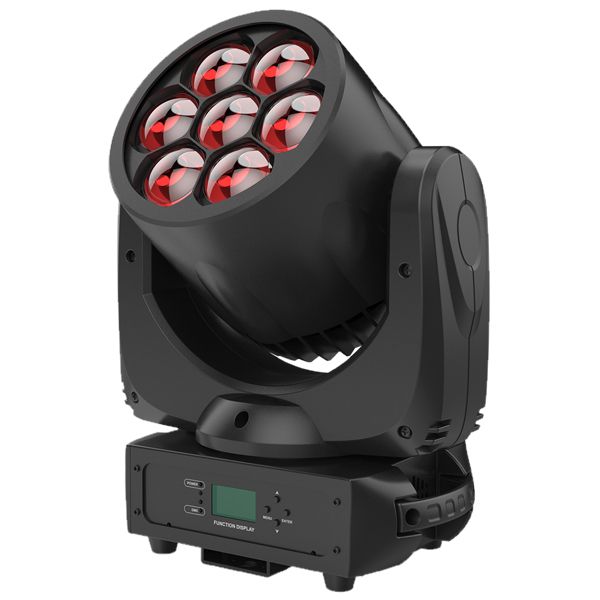

Model
CM-350Z
Light Source
Light source: 7x30W RGBW LED
Optical system
Advanced optical system to ensure clear and large-range beam & wash effect
High - efficiency zoom optical system, ratio 1:5
Zoom range: 5° - 50°
Control and Program
4-buttons
Display: LCD display
Protocols: DMX, Wireless Control (optional)
DMX Protocol modes: 2
Control channels: 11,15
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 90-264 V, 50/60 Hz
Power consumption: 270 W
Power connector input/output
Data in/out: 3-pin and 5-pin XLR socket
Fixture Specification
Height: 409 mm (16.1")
Width: 212 mm (8.3")
Depth: 325 mm (12.8")
Weight: 11 kg (24.3 lbs)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection rating：IP20
Approvals
CE Compliant
Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety Rope Hole
Included items
Digital User Manual
Power Cable
2 pairs of 1/4-turn locking points under the base
Optional Accessories (with item code)
Raincover：3033001749
Flight Case：
3205001173（6 in 1）
3205001160（4 in 1）
Clamp：2060001632（C-250B）
Signal Line：3-pin or 5-pin signal line
Safety cable : 2060000200（SW-02）
