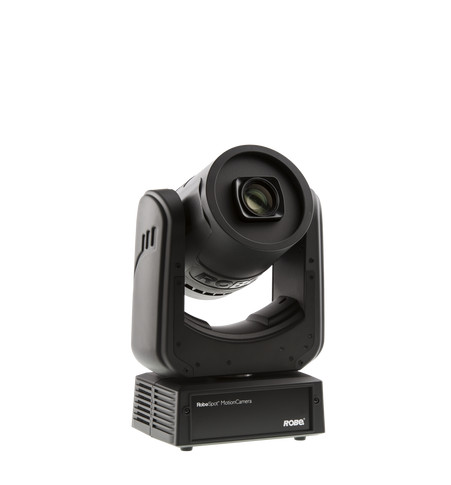

RoboSpot™ MotionCamera
페이지 정보
본문
Camera
Type: SNZ-6320
Resolution: 1920x1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
16x digital zoom
Streaming: H.264, MJPEG dual codec, Multiple streaming
Vision: Day & Night (ICR), WDR (120dB)
Minimum illumination: 0.3 Lux
Control and programming
Setting & Addressing: two-row LCD display & 4 control buttons
Protocols: USITT DMX-512, RDM
Wireless CRMX™ technology from Lumen Radio: On request
DMX Protocol modes: 1
Control channels: 8
Pan/Tilt resolution: 16 bit
Zoom: 8 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Automatic Pan/Tilt position correction
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 55°C (131°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 35 W at 230V / 50 Hz
Power in/out connector: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Camera output: RJ 45
Mechanical specification
Height: 386 mm (15.2")
Width: 277 mm (10.9")
Depth: 147 mm (5.8")
Weight: 5.7 kg (12.6 lbs)
Type: SNZ-6320
Resolution: 1920x1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
16x digital zoom
Streaming: H.264, MJPEG dual codec, Multiple streaming
Vision: Day & Night (ICR), WDR (120dB)
Minimum illumination: 0.3 Lux
Control and programming
Setting & Addressing: two-row LCD display & 4 control buttons
Protocols: USITT DMX-512, RDM
Wireless CRMX™ technology from Lumen Radio: On request
DMX Protocol modes: 1
Control channels: 8
Pan/Tilt resolution: 16 bit
Zoom: 8 bit
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Automatic Pan/Tilt position correction
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 55°C (131°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 35 W at 230V / 50 Hz
Power in/out connector: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Camera output: RJ 45
Mechanical specification
Height: 386 mm (15.2")
Width: 277 mm (10.9")
Depth: 147 mm (5.8")
Weight: 5.7 kg (12.6 lbs)
